Slicer Registration Library Case #42:
Intra-subject Brain MRI: serial assessment of brain development in autism

Input

fixed image/target		moving image

Modules used

• General Registration (BRAINS)

Download (from NAMIC MIDAS)

Why 2 sets of files? The "input data" mrb includes only the unregistered data to try the method yourself from start to finish. The full dataset includes intermediate files and results (transforms, resampled images etc.). If you use the full dataset we recommend to choose different names for the images/results you create yourself to distinguish the old data from the new one you generated yourself.

• RegLib_C42.mrb
  (input data only, Slicer mrb file. 12 MB)

• RegLib_C42_full.mrb
  (input data + results, Slicer mrb file. 36 MB).

Description

This is a typical case of change assessment.

Keywords

MRI, brain, head, intra-subject, T1, autism, change assessment, pediatric MRI

Procedure

1. Affine Registration: open the General Registration (BRAINS) module.
   1. Fixed Image Volume: "Autism_T1_4yrs"
   2. Moving Volume: "Autism_T1_2yrs"
   3. Registration phases: check boxes for Rigid" ,"Scale", "Affine"
   4. Slicer Linear Transform: select "create new transform", rename to "Xf1_Affine" or similar
   5. leave rest at defaults. Click Apply
   6. registration should take ~ 10 secs.
   7. use fade slider to verify alignment; compare with result snapshots shown below. Alignment will not be perfect but should be better than before.
   8. note: you can also change the colormaps for the fixed and moving volumes to better judge the alignment: go to the Volumes module and in the Display tab, select "green" and "magenta" as the respective colormaps for the two volumes (vhf, vhm)
2. Nonrigid Registration: open the General Registration (BRAINS).
   1. Fixed/Moving Image Volume: as above
   2. Registration phases: uncheck boxes for rigid, scale and affine and check box for BSpline
   3. Output: Slicer Linear transform: set to None
   4. Output: Slicer BSpline transform: create new, rename to "Xf2_BSpline" or similar
   5. Output Image Volume: create new, rename to "Autism_T1_2yrs_Xf2"; Pixel Type: "short"
   6. Registration Parameters: increase Number Of Samples to 300,000; Number of Grid Subdivisions: 5,5,5
   7. Leave all other settings at default
   8. click apply

Registration Results

baseline and follow-up before registration (click to enlarge)

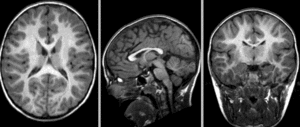

after affine alignment. Note the residual shape differences (click to enlarge)

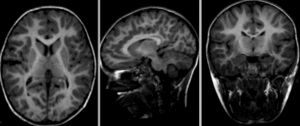

after nonrigid BSpline registration (click to enlarge)
| visualization of the nonrigid deformation component only
