Introduction and Acknowledgements

Authors: Andrey Fedorov (BWH), Steve Pieper (Isomics) Contact: Andrey Fedorov, <email>fedorov@bwh.harvard.edu</email> License: Slicer license Surgical Planning Lab(SPL) Supported in part by NIH grants CA151261, RR019703 and CA111288.

Extension Description

Editor Effect that allows to adjust window/level for volumes selected in Background/Foreground slice view layers using mouse and/or region of interest.

Module Description

Use this tool to change window/level of background/foreground volumes based on the intensity range of the selected rectangle. Normal mode: use primary mouse button to adjust window level. Depending on the selection, Foreground, Background or both layers are affected. Rectangle mode: Left Click and Drag: sweep out an outline that will draw when the button is released. The outline will define the rectangle for calculating the new window/level settings for the selected layers.

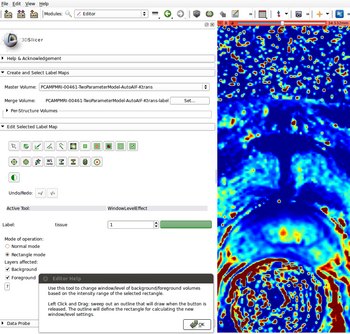

The screenshot of the WindowLevelEffect

Tutorials

None.

Similar Extensions

Editor

Information for Developers

Source code: https://github.com/fedorov/WindowLevelEffect
