Module Description

The AstroVolume can read/write FITS file (astronomical data format) and handle the color function and display of Astro Volumes.

Panels and their use

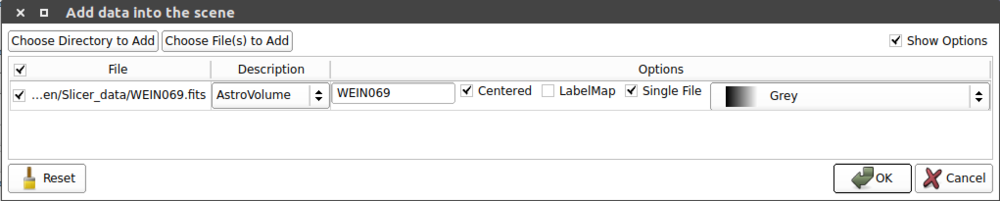

Handling the loading and writing of FITS files

The display of the Astronomical World Coordinate (WCS) and Data Probing for 2D views

The control of the display coordinates

The control of the 2D color transfer function

1000 px 1000 px 1000 px

The control of the 3D color transfer function

Tools to convert mask from FITS files (e.g., generated by SoFiA) into segmentations objects and viceversa

Astro segmentation editor effect

AstroContours Effect

This editor effect can create multiple segmentation (3D contours) of the input volume.

Contour Levels info:

The Levels can be specified as a list (e.g., 'VALUE1;VALUE2;VALUE3') or in the following format 'FISRT:LAST:SPACING'. In the case of a list, it is possible also to specify for each Contour both the MIN and MAX intensity values of the level (e.g., 'CONTOUR1MIN,CONTOUR1MAX;CONTOUR2MIN,CONTOUR2MAX'). If the string is preceded by 'RMS', the levels are evaluated in units of RMS of the datacube.

The contours in SlicerAstro are a full 3D segmentation. Therefore it can be computationally heavy to segment (marching cubes algorithm) and visualize around the noise range [-2, 2] RMS for large datacubes.\

AstroCloudLasso Effect

The AstroCloudLasso segmentation editor effect is a tool to interactively perform a 3D selection. This 3D selection (the segmentation) can be used either for:

1. changing an imported mask generated by automated algorithms (e.g., source finders);
2. providing an input mask to a variety of tools in SlicerAstro (e.g., MomentMaps module and Modeling module).
