Module Description

The SubjectHierarchy module acts as a central data-organizing point in Slicer. All DICOM data is autmatically added to the tree. Non-DICOM data can be parsed if loaded from a local directory structure, or has to be manually added (non-SH nodes are the ones on the bottom with no icons). Subject hierarchy nodes provide features for the underlying data nodes, including cloning, bulk transforming, bulk show/hide, type-specific features, and basic node operations such as delete or rename. Additional plugins can provide other type-specific features and general operations, see Subject hierarchy labs page

Use Cases

Load DICOM data and need to see in the same hierarchy Visualize and bulk-handle lots of data nodes loaded from disk Easy show/hide of branches of displable data Transform whole study (any branch) Export DICOM data (coming soon) Edit DICOM tags (coming soon) Create contour from labelmap or model (currently supported only in the SlicerRT extension Tutorials None specifically for Subject Hierarchy yet Panels and their use Subject hierarchy tree Contains all the objects in the Subject hierarchy in a tree representation Data loaded from DICOM are automatically added to the tree Non-DICOM data appears under the Subject hierarchy (SH - role icon next to the node name). They can be added to the tree in two ways 'Create hierarchy from loaded diractory structure' action in the context menu of the scene (see bottom screenshot) Drag&drop manually under a SH node Nodes can be drag&dropped under other nodes, thus re-arranging the tree Basic operations (accessible in the context menu of the nodes by right-clicking them) Transform node or branch: Double-click the cell of the node or branch to transform in the column named 'Tr', then set the desired transform. If the column is not visible, check the 'Transforms' checkbox under the tree. An example can be seen in the top screenshot at 'Day 2' study Show/hide node or branch: Click on the eye icon Delete: Delete both data node and SH node Rename: Rename both data node and SH node Clone: Creates a copy of the selected node that will be indentical in every manner. Its name will contain a '_Copy' postfix Edit properties: If the role of the node is specified (i.e. its icon is not a question mark), then the corresponding module is opened and the node selected (e.g. Volumes module for volumes) Create child node: Create a node with the type specified as the child type of the selected node (e.g. 'Study' -> 'Series') There are no nodes in the tree when Slicer is opened, new nodes can be added by right-clicking the Scene Roles and corresponding functions Volumes: icon, Edit properties and additional information in tooltip 'Register this...' action to select fixed image for registration. Right-click the moving image to initiate registration 'Segment this using...' action allows segmenting the volume in for example the Editor module 'Toggle labelmap outline display' for labelmaps Models: icon, Edit properties and additional information in tooltip Markups: icon and Edit properties SceneViews: icon, Edit properties and Restore scene view Charts: icon and Show chart MRML Node Inspector (closed drop-down panel under the tree) Displays the attributes of the currently selected Subject hierarchy node. Can be edited by double-clicking on an attribute name or value How to Create new Patient/Subject from scratch Right-click on the top-level item 'Scene' and select 'Create new subject' Create new generic Subject hierarchy node from scratch Right-click on an existing node and select 'Create generic child node'. The level of the child node will be one under the parent node if available (e.g. 'Patient' / 'Subject' -> 'Study', 'Subseries' -> 'Subseries'). Rename Subject hierarchy node Right-click on the node and select 'Rename', or double-click the name of a node Apply transform on node or branch Double-click the cell of the node or branch to transform in the column named 'Tr', then set the desired transform. If the column is not visible, check the 'Transforms' checkbox under the tree. An example can be seen in the top screenshot at 'Day 2' study Contour-specific features (requires SlicerRT extension) Create contour from scratch In Contours module select 'Create new Contour' in the contour selector drop-down to create a new contour In Subject Hierarchy module drag&drop new contour from 'Potential subject hierarchy nodes' list to under a contour set in the tree The default representation is an empty Ribbon model. It can be converted to Indexed labelmap in the Contours module and then the labelmap can be edited in the Editor module Create contour from labelmap volume or model In Subject Hierarchy module drag&drop the existing representation (labelmap or model) from the non-Subject hierarchy nodes (on the bottom of the tree without role icons) to under a contour set in the tree. This way an encapsulating Contour node gets created and associated to the corresponding color table Create new Contour set from scratch Right-click on an existing Study node and select 'Create child contour set'. This menu item is only available for Study level nodes

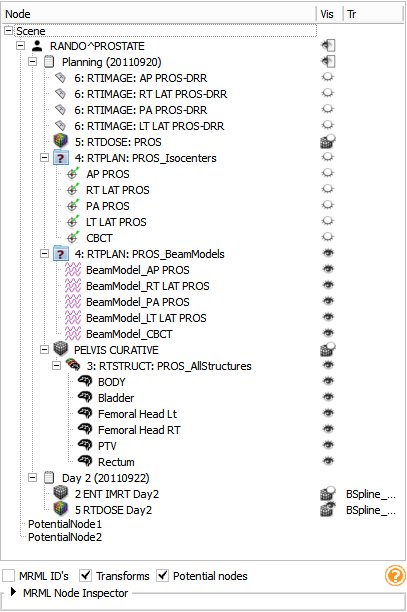

Subject hierarchy module GUI Parse local data loaded from directory structures

Similar Modules

• Data

References

• Additional information on Subject hierarchy labs page
• Manual editing of contours can be done in the Contours module

Information for Developers

• TODO: Guideline for writing plugins (role and function), adding context menu actions (scene/node, handle/create), defining child levels
• Glossary of all the used terms in SlicerRT
